Metal stamping shells have become a cornerstone in modern manufacturing, offering precision, efficiency, and versatility for industries ranging from automotive to electronics. But what makes them so indispensable? This article delves into the technical aspects of metal stamping shells, exploring their manufacturing processes, material properties, applications, and benefits. We’ll also provide detailed product specifications and answer the most common questions buyers have, ensuring you gain a comprehensive understanding of this critical manufacturing component.

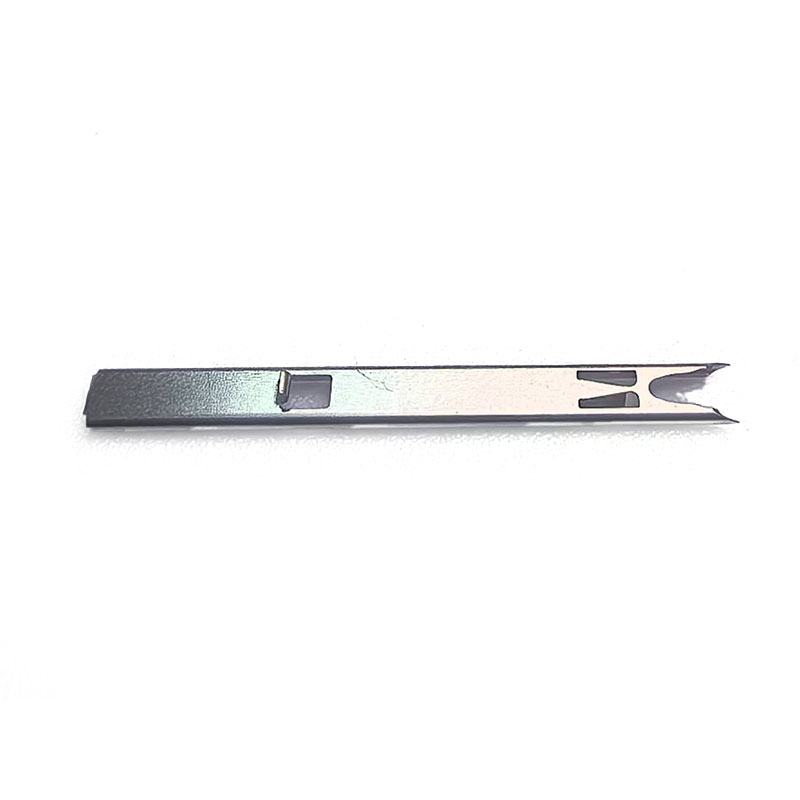

Metal stamping shells are thin, pre-formed components created through a metal stamping process. This process involves the use of high-precision dies and presses to cut, shape, and form metal sheets into shells of specific dimensions and tolerances.
The stamping process typically follows several stages:
Blanking: A metal sheet is cut into a specific size, known as a blank.
Forming: The blank is shaped into the shell using a stamping die.
Piercing and Trimming: Holes, slots, or excess material are removed to achieve the final design.
Finishing: The shells undergo surface treatment, such as polishing, coating, or plating, depending on their application.
Metal stamping shells are widely appreciated for their repeatability and precision. Unlike casting or machining, stamping allows for the rapid production of high-volume components without compromising structural integrity or dimensional accuracy.
High Precision: Maintains tight tolerances even in mass production.
Material Efficiency: Minimal waste compared to machining.
Cost-Effective: Lower production cost for large volumes.
Versatility: Can be manufactured from various metals, including stainless steel, aluminum, copper, and brass.
Surface Quality: Compatible with finishing processes like anodizing, plating, and coating.
Metal stamping shells serve as foundational components in many products, including automotive housings, electrical enclosures, and industrial machinery. Their durability and precision make them ideal for applications where consistency is crucial.
The manufacturing process of metal stamping shells combines material selection, die design, and quality control to achieve optimal performance. Here’s a closer look at each critical step:
The performance of a stamping shell begins with the right material. Common metals include:
| Material | Characteristics | Applications |
|---|---|---|
| Stainless Steel | Corrosion-resistant, durable, high strength | Automotive, electronics, medical |
| Aluminum | Lightweight, good thermal conductivity | Aerospace, consumer electronics |
| Copper | Excellent electrical conductivity | Electrical contacts, connectors |
| Brass | Corrosion-resistant, easy to machine | Decorative components, fittings |
Selecting the correct material ensures that the final stamping shell meets both mechanical and aesthetic requirements.
Precision dies are engineered to shape and cut the metal with exact tolerances. Advanced die designs reduce material stress and minimize defects. High-speed stamping presses are used to achieve consistent results, especially for large production runs.
Quality assurance is critical. Metal stamping shells undergo:
Dimensional Inspection: Ensures adherence to tight tolerances.
Surface Analysis: Checks for scratches, burrs, or other imperfections.
Mechanical Testing: Confirms strength, hardness, and elasticity meet standards.
By carefully controlling each step, manufacturers can deliver shells that are reliable and highly durable.
Metal stamping shells provide several advantages that make them a preferred choice in multiple industries. Their combination of precision, durability, and cost-effectiveness makes them ideal for high-demand applications.
Automotive Industry – Metal stamping shells are used for engine components, transmission parts, and chassis elements. Their precision ensures optimal mechanical performance and safety.
Electronics – Stamping shells form housings, connectors, and shielding components. High conductivity metals like copper and aluminum improve electronic efficiency.
Aerospace – Lightweight shells are used in aircraft interiors, structural components, and heat dissipation systems.
Medical Equipment – Stainless steel shells maintain hygiene standards while offering durability for surgical tools and enclosures.
High Production Speed: Reduces lead time and meets tight delivery schedules.
Consistent Quality: Ensures uniformity across batches, critical for assembly line compatibility.
Reduced Material Waste: Precision stamping limits scrap metal, improving cost efficiency.
Customization Flexibility: Die modifications allow the creation of complex geometries for specific industrial needs.
By choosing metal stamping shells, manufacturers can improve product performance while reducing operational costs.
Understanding the specifications of metal stamping shells is crucial for selecting the right product. Below is a summary of typical parameters:
| Parameter | Typical Range / Description |
|---|---|
| Thickness | 0.2mm – 5mm |
| Outer Diameter | 10mm – 300mm |
| Material | Stainless Steel, Aluminum, Copper, Brass |
| Surface Finish | Polished, Matte, Plated (Nickel, Chrome), Anodized |
| Tolerance | ±0.01mm – ±0.05mm |
| Production Method | Progressive Die Stamping, Transfer Stamping, Fine Blanking |
| Application | Automotive, Electronics, Aerospace, Medical Devices |
Q1: How can I ensure the durability of metal stamping shells in high-stress applications?
A1: Durability depends on material selection, heat treatment, and surface finishing. Stainless steel shells offer high tensile strength and corrosion resistance, while aluminum and copper shells are ideal for lighter, conductive applications. Additionally, coatings such as nickel or chrome plating can further enhance wear resistance and longevity. Proper design considerations in die geometry and stamping parameters also minimize stress concentrations, ensuring consistent performance under load.
Q2: Can metal stamping shells be customized for unique designs?
A2: Yes. Metal stamping shells can be highly customized by adjusting die designs, material types, and surface finishes. Complex geometries, perforations, and integrated features can be incorporated without compromising precision. Manufacturers often collaborate with clients to create prototypes and test runs, ensuring that the final shells meet exact specifications and functional requirements.
Metal stamping shells are integral to modern manufacturing, offering unmatched precision, efficiency, and versatility across multiple industries. Selecting the right material, maintaining tight tolerances, and applying suitable surface finishes are key factors that determine their performance. As a trusted provider in the field, Qiren delivers high-quality metal stamping shells designed to meet the rigorous demands of automotive, electronics, aerospace, and medical industries.
For inquiries or detailed product specifications, contact us to discuss your requirements and receive expert guidance tailored to your manufacturing needs.
