In modern metalworking and automotive industries, high-speed stamping molds have become the backbone of precision manufacturing. But what exactly are they? A High-Speed Stamping Mold is a precision-engineered tool designed to shape, cut, and form metal sheets into complex parts at extremely high speeds. Unlike conventional molds, which focus primarily on shaping, high-speed stamping molds combine rapid performance with micron-level accuracy, enabling mass production without compromising quality.
These molds are essential for industries such as automotive, aerospace, electrical components, telecommunications, and consumer electronics, where precision and efficiency dictate profitability.
High-speed stamping molds operate within automated production lines, using mechanical or servo presses to form materials like stainless steel, aluminum, copper, or carbon steel into exact specifications. The high cycle rate — often exceeding 400–1200 strokes per minute — minimizes downtime, reduces material waste, and ensures consistency in every part produced.
| Parameter | Description |
|---|---|
| Material Compatibility | Stainless steel, brass, copper, aluminum, and carbon steel |
| Stamping Speed | 400–1200 strokes per minute |
| Tolerance Accuracy | ±0.002–0.005 mm |
| Hardness (Mold Base) | HRC 58–62 |
| Mold Base Material | SKD11, DC53, or Carbide steel |
| Surface Treatment | PVD/TiN coating for wear resistance |
| Service Life | Over 10 million strokes per cavity |
| Applications | Terminals, connectors, shielding cases, motor cores, and electronic housings |
This table showcases how engineering precision and material science come together to create molds capable of high-volume production under demanding conditions.
Beyond sheer performance, high-speed stamping molds also reduce operational costs. Their robust material composition and wear-resistant coatings extend tool life and minimize replacement intervals, making them an indispensable investment for companies pursuing long-term productivity gains.
The working principle of a High-Speed Stamping Mold revolves around the synchronization of motion, force, and material deformation. The process begins with a coil of metal being unrolled, straightened, and fed continuously into a high-speed press machine. The stamping mold — precisely aligned inside the press — executes a series of actions such as punching, blanking, bending, and forming, depending on the desired part design.
Each section of the mold plays a specific role:
Punch and Die Section – Defines the shape and size of the final component.
Guide Posts and Bushings – Maintain alignment between punch and die for consistent results.
Stripper Plate – Removes the metal strip after each stroke, preventing sticking and deformation.
Pilot Pin System – Ensures accurate positioning during each feed cycle.
Ejector Mechanism – Releases the finished part smoothly without damage.
The entire operation occurs at high speed with minimal vibration, supported by computer-aided mold design (CAD/CAM) and wire-cut EDM technology, which allow for ultra-fine cutting and fitting tolerances.
In high-speed production, lubrication plays a vital role. Advanced oil-spray systems are integrated to reduce friction and control temperature, ensuring stable operation even under prolonged use. The outcome is a precisely formed product that meets strict dimensional and aesthetic standards — perfect for intricate components such as mobile phone connectors or motor stator cores.
The key advantage lies in repeatability. A well-designed high-speed stamping mold can produce millions of identical pieces without dimensional deviation, saving both time and material. For companies that depend on high productivity and consistent output, this technology becomes a cornerstone of their manufacturing efficiency.
The question of why companies invest in high-speed stamping molds can be answered through performance, precision, and profitability. Let’s break it down.
High-speed stamping molds operate at impressive stroke rates, which drastically shorten production cycles. Manufacturers can output thousands of identical parts per hour with minimal manual intervention.
Precision engineering ensures dimensional tolerances as tight as ±0.002 mm. Such accuracy is crucial for industries that demand flawless performance — from automotive safety components to delicate micro-electronic terminals.
Using materials like SKD11 or carbide, combined with surface coatings such as TiN or CrN, these molds achieve exceptional hardness and wear resistance. This durability translates to fewer maintenance stops and longer operating life.
Through optimized stamping layout design and efficient nesting, waste material is minimized. High-speed stamping also reduces the need for secondary machining or finishing, further cutting down production costs.
Because each stroke follows the exact programmed path, product uniformity is guaranteed. Automated inspection systems can be integrated into the stamping line for real-time monitoring and defect detection.
Modern molds use energy-efficient servo press systems that lower power consumption and reduce lubricant waste, aligning with green manufacturing goals.
In an era where global competition requires continuous improvement, adopting high-speed stamping molds means achieving faster delivery, improved reliability, and enhanced profitability.
Choosing the right mold involves more than just matching a specification sheet — it’s about understanding your production requirements, materials, and long-term goals. Here’s a professional approach to selection:
If you’re producing over a million parts annually, a carbide-based mold with high wear resistance is ideal. For medium-volume production, DC53 steel molds offer an excellent balance between performance and cost.
For intricate components like precision connectors or electronic terminals, opt for multi-stage progressive molds that integrate several stamping actions into one continuous process.
Ensure your mold matches the press machine’s capacity — both in terms of stroke speed and tonnage. A mismatch can reduce tool life or compromise part quality.
Ask your supplier about mold maintenance schedules, regrinding intervals, and replacement parts availability. A reliable after-sales service network significantly extends tool life.
High-quality mold makers use CNC machining, wire-cut EDM, and CMM inspection to verify precision. Always request measurement reports to ensure dimensional accuracy before mass production.
Your mold supplier’s expertise directly affects production reliability. Choose a company with proven technical background, design capability, and industry certifications like ISO9001.
Q1: What types of products can be made using a High-Speed Stamping Mold?

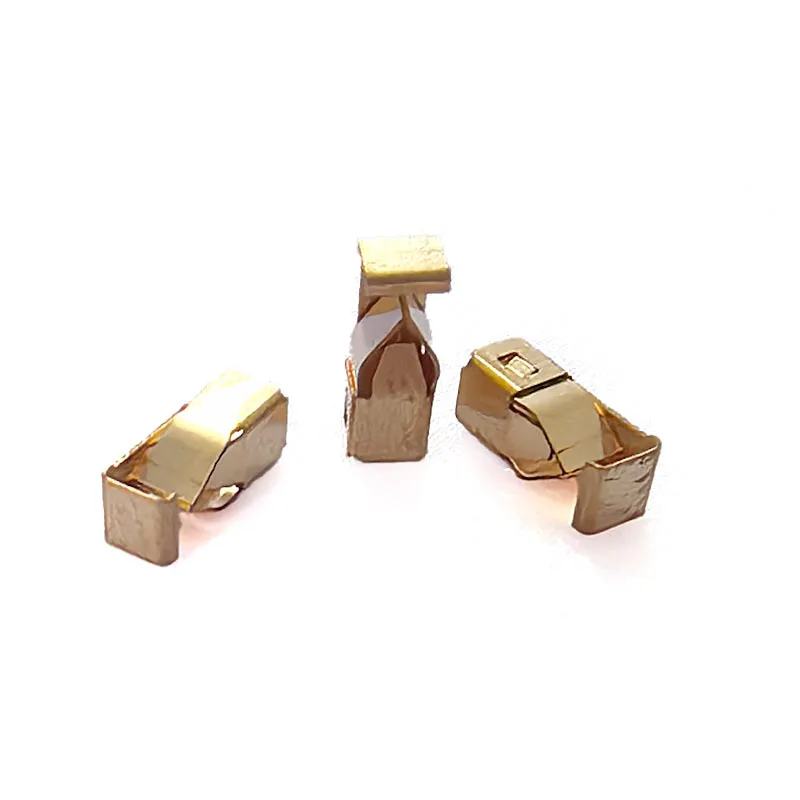

A: High-speed stamping molds are ideal for producing precision components such as electrical terminals, motor cores, metal shields, battery connectors, and automotive sensor housings. Their flexibility allows them to form both small and large parts across multiple industries.
Q2: How often should a High-Speed Stamping Mold be maintained?
A: Maintenance frequency depends on material hardness, operating speed, and production volume. Generally, routine inspection should occur every 200,000–300,000 strokes, while regrinding or part replacement may be required after 3–5 million strokes to maintain peak performance.
In today’s precision-driven manufacturing landscape, High-Speed Stamping Molds stand as the foundation of fast, reliable, and cost-efficient production. They empower industries to meet tight deadlines while maintaining unparalleled accuracy and repeatability.
Qiren, a trusted name in mold design and engineering, provides tailor-made high-speed stamping solutions backed by advanced production technology and stringent quality control. With a commitment to innovation and customer satisfaction, Qiren helps manufacturers achieve higher output, longer mold life, and superior performance across every production stage.
For more information or customized mold solutions, contact us today to discuss how Qiren can elevate your production efficiency and quality standards.
